This inverter is aimed at those who want a larger hybrid plant now or in the future and want the option to connect to batteries. Just recently, Growatt came out with its larger battery-compatible inverters. It greatly increases the possibilities of balancing our power grid and thus making money from the purchase. You will pay for the plant in 2 to 2.5 years and then the profit will increase significantly. This inverter is the largest you can have if you have a maximum of 25A fuse in your holiday home or villa. If you want our larger 20 kW hybrid inverter, first check if you can have more than a 25A fuse where you live

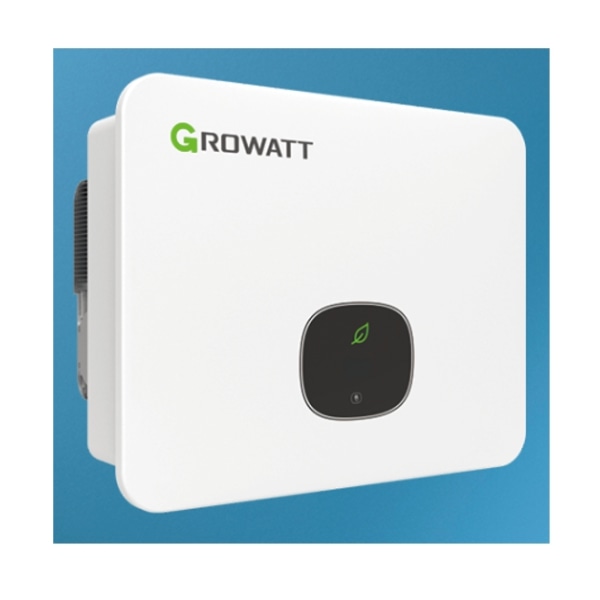

The Growatt Hybrid super-efficient Inverter MID17KTL3-XH has built-in DC and AC protection and two separate MPPTs with two inputs per MPPT. The inverter also comes with a built-in DC switch and, as mentioned, DC and AC surge protection.

Preferences

Data sheet MID17KTL3-XH

INPUT DATA DC

Max. recommended PV power (for module STC) 34000W

Max. DC voltage 1100V

Starting voltage 200V

Nominal voltage 600V

MPPT voltage range 160V- 1000V

Number of MPP trackers 2

Number of PV strings per MPP tracker 2 of 2

Max. input current 32/32A

Max. short circuit current 40/42A

per MPP tracker 40/42A

INPUT DAT (DC BATTERY)

Compatible battery APX HV battery system (5kWh~30kWh)

Operating voltage range 600 V-980 V

Max. operating current 25A

Max. charging power 15000W

Max. discharge power 15000W

OUTPUT DATA (AC)

AC nominal power 17000W

Max. AC apparent power 18700VA

Rated AC voltage (range) 220V/380V, 230V/400V (340-440V)

AC mains frequency (range) 50/60 Hz (45-55Hz/55-65 Hz)

Max. output current 28.3A

Adjustable power factor 0.8 leading...0.8 lagging

THDI < 3%

AC mains connection type 3W+N+PE

EFFICIENCY

MAX. efficiency 98.75%

European efficiency 98.50%

PROTECTIVE DEVICES

DC reverse polarity protection Yes

DC switch Yes

AC/DC surge protection type 2

Insulation resistance monitoring Yes

AC Short Circuit Protection Yes

Earth fault monitoring Yes

Network monitoring Yes

Protection against islands Yes

Earth-fault circuit breaker Yes

String fault monitoring Yes

AFCI protection Yes

GENERAL INFORMATION

Dimensions (W/H/D) 580 x 435 x 230 mm

Weight 29.5 kg

Operating temperature range –25°C to +60°C

Power consumption during the night
