The APX battery system uses cobalt-free LiFePO4 chemistry and four-level protection of BMS, modular energy optimizer, fuse and aerosol to ensure its improved safety, reliability and long life. In addition, the modular energy optimization ensures that the system fully utilizes each pack's energy, mixing packs of new and old batches and mixing packs of different capacities, offering the most flexible system application

The advantages of the APX HV battery pac

·Flexible capacity options, 5kWh to 30kWh

·Energy optimization at module level

·Support to mix new and old battery modules in one system

· Easy installation with modular and stacked design

·Long service life, 10 year warranty

-Cobalt-free LiFePO4 battery

- Built-in modular energy optimization

-Passive protection with fuse and aerosol

-Soft start to protect the system from overvoltages

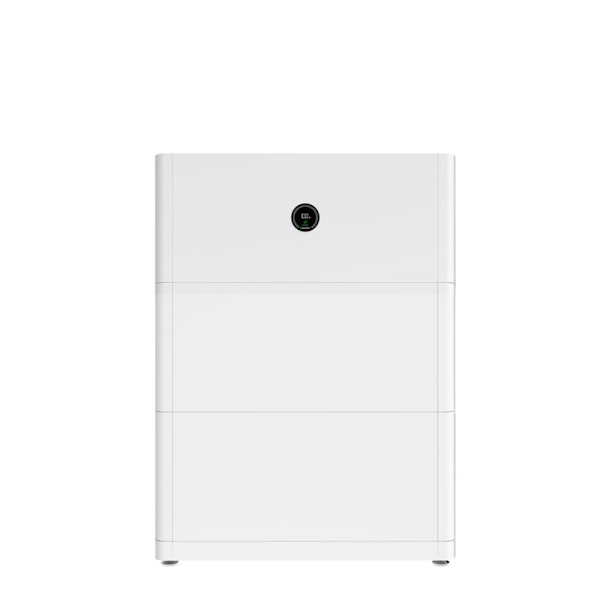

GROWATT battery APX 5.0H for MOD TL3 XH BP. Works with Growatt three-phase inverters.

Growatt energy storage kit includes:

Configuration for an inverter:

2 x GROWATT battery APX 5.0H

1 x inverter equipped with remote monitoring Shine WiFi-X NOTE not included

1 x GROWATT APX BMS (98020-P1 + cable)

1 x GROWATT APX battery base

Basic package

• Power module: APX 98034-P2

Number of power modules (power module): 1

• Battery module: 2

• Energy capacity of the battery module: 10 kW

• Max. output power: 5 kW

• Peak power: 8 kW, 60s

• Max. output power: 5 kW

• Peak power: 8 kW, 60s

• Dimensions (W/D/H) 690 x 185 x 955 mm

• Weight: 118 kg

• Nominal voltage (three-phase system) 650V

• Operating voltage range (three-phase system) 600V to 980V

• Battery type: Cobalt Free Lithium Iron Phosphate (LFP)

• Protection class: IP66

• Installation: Road mounting or floor mounting

• Operating ambient temperature: –10°C~50°C

• Relative humidity: 5% to 95%

• Cooling: Natural

• Altitude: plus or minus 4000 meters

• DOD: 90%

• Warranty: 10 years

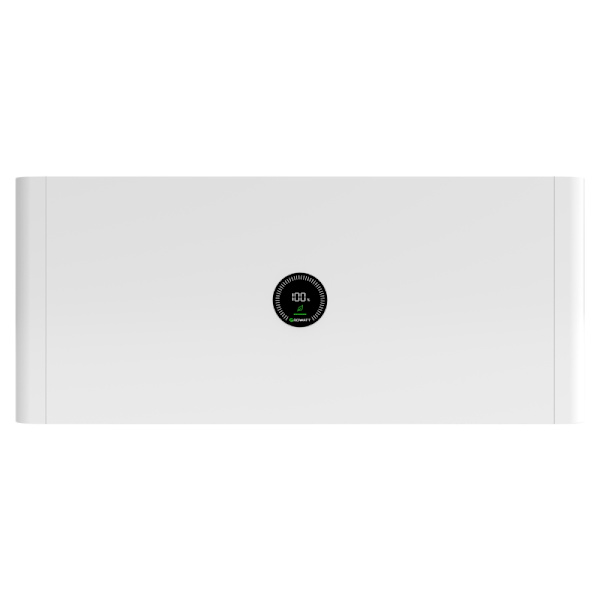

Power module

• Dimensions (W/D/H): 690 x 185 x 295 mm

• Weight: 16 kg

• Communication port: CAN/RS485

• Maximum voltage protection: 13 A

• Peak voltage fuse: 20A, 60s

• Monitoring parameters: SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature

Battery module

• Nominal energy: 5 kW

• Nominal voltage: 385V

• Operating voltage range: 330 – 450 V

• Dimensions (W/D/H): 690 x 185 x 295

• Weight: 50 kg

• Certification and Licensing: IEC62619(Cell&Pack)/IEC60730/VDE2510-50/ CE/CEC/RCM/UN38.3/UL1973/UL9540A/FCC

• 1 module When using the APX 98020-P1, max. the charge/discharge power of the battery system is 7.5 kW, max. the charge/discharge power of the system is also limited by the max. charge/discharge the inverter.

• 2 modules When using the APX 98034-P2, max. the charge/discharge power of the battery system is 15 kW, max. the charge/discharge power of the system is also limited by the max. charge/discharge the inverter.

• 3 modules Include power module (APX 98020-P1/APX 98034-P2) and battery base

* 4 modules, Installation on 4 floors requires additional base (W/D/H=690/185/50 mm)

*APX series battery has an EU model and a general model, storage inverters sold in European countries only work with EU model APX battery

Article number: 107464
