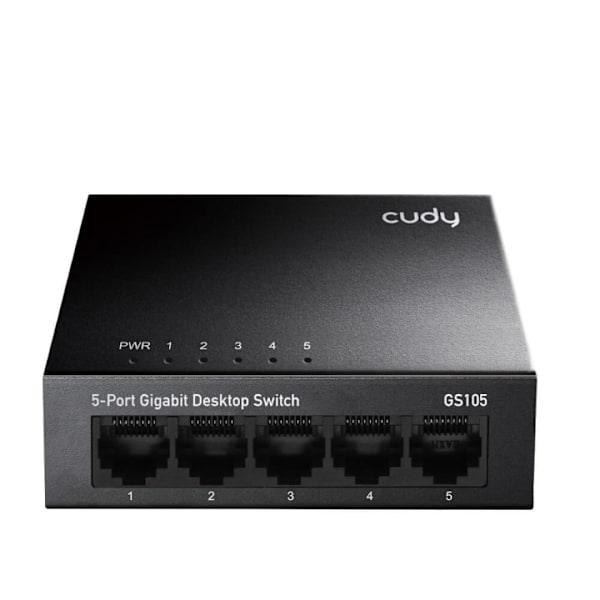

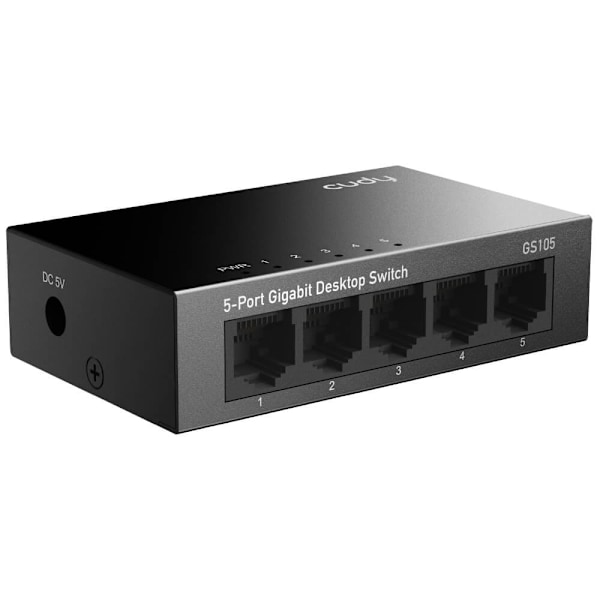

Cudy 5-Port Gigabit Desktop Switch, Model: GS105

• Works with IP Cameras for home and office, small business.
• Works with VoIP phones for business conference
• Works with WiFi APs for office and business
• Store-and-Forward switching method
• Supports 16K MAC address auto-learning and auto-agin

Increase the speed of your network with the 5-port Gigabit switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Automatically adjusts Power consumption according to the link status and cable length.This Gigabit Desktop Switch features the innovative energy-efficient technologies that can greatly expand your network capacity with much less power.

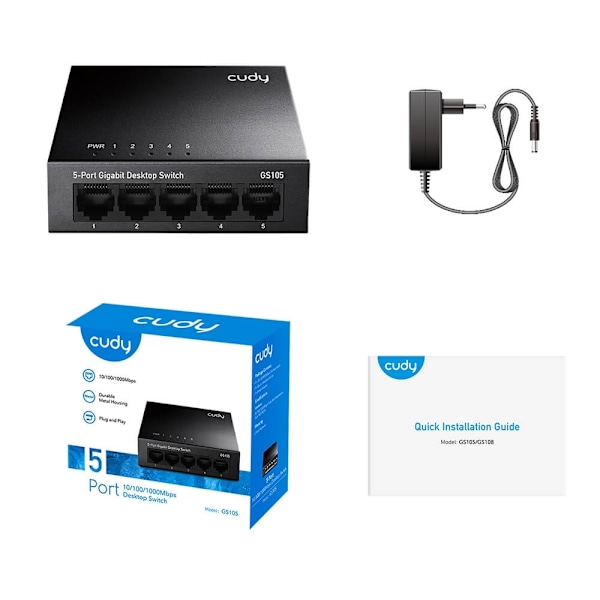

Delivers with Power Adapter and Quick Installation Guide.
Specifications
Model:    GS105
Standard configuration:    5 10/100/1000M RJ-45 adaptive ports
Switching Capacity:    10Gbps
Throughput:    7.44Mpps
Packet Buffer:    1M
MAC Address.    1K
Jumbo Frame:    2K
Transfer Mode:    Store and forward
MTBF:    100000 hour
Network protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Network Medium
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5  or above UTP(≤100m)
1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment
Working Temperature：-10~50°C
Storage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet
Structure Size
Product Size：87*54*23mm
Product Net-Weight：0.2kg
Product Gross-Weight：0.4kg
Power Voltage
Power Input Voltage ：AC 100-240 V
Switch Input Voltage:：DC 5V
