The BY-XM6 Mini is an advanced and versatile 2.4 GHz wireless microphone system with broadcast-quality sound, OLED screen on the receiver and a range of up to 100m without obstacles.

• Ultra-compact design
• 2.4GHz ISM wireless technology
• Broadcast-quality sound
• OLED screen on receiver
• Real time monitoring available
• Flexible gain setting

BY-XM6 Mini is an advanced and versatile 2.4GHz wireless microphone system that expands on the success of the classic BY-XM6 microphone series with a further improvement in portability. With the features of ultra-compact, stable signal transmission, it ensures that the crystal-clear sound can be captured and delivered. Furthermore, the transmitters can automatically pair with the receiver when turned on, and thanks to the ultra-compact design, they can be easily clipped to clothing without creating any sensation, providing users with a high-quality recording experience, especially during outdoor activities.

In terms of the BY-XM6 Mini's design concept, it maintains the priority of being lightweight and comfortable, the transmitter each weighs only 14.5g and 34g for the receiver accordingly, which is very impressive progress and what's called a “compact, yet versatile” wireless microphone. Plus, the receiver features an OLED display to show all vital information, making sure every detail during the shooting can be under control.

By introducing an advanced 2.4GHz ISM wireless transmission technology, a built-in omnidirectional microphone, and an automatic frequency-hopping function, the BY-XM6 Mini microphone system delivers professional high-quality sound with an impressive sensitivity of -39dB and effectively avoids static noise and auto dropouts. Moreover, it ensures stable and interference-free signal transmission with a range of up to 100m without obstacles.

The BY-XM6 Mini is designed to perfectly work with DSLR, mirrorless, mixers, modern computers, smartphones, tablets, and more. In addition, both transmitter and receiver are equipped with a built-in rechargeable lithium-ion battery that makes it a worthwhile option for content creators to consider if they are constantly shooting outdoors.

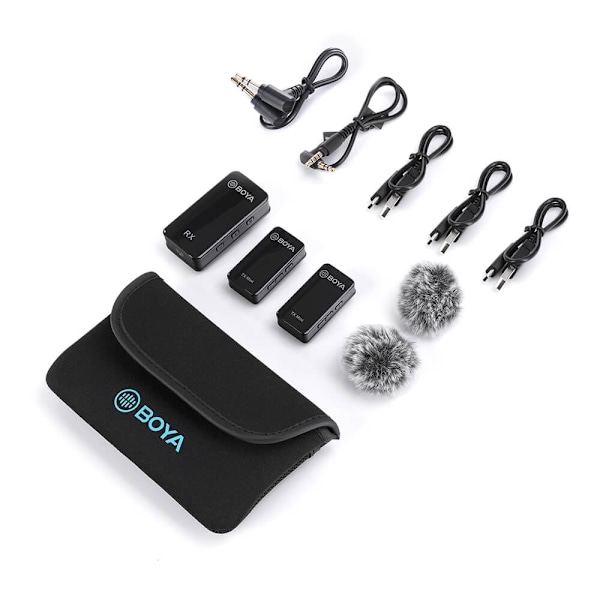

Packing list
BY-XM6-S2 Mini Kit
2x BY-XM6 TX Mini Transmitter
1x BY-XM6 RX Receiver
3x USB-C Charging Cable
2x FurWindshield for Built-in Microphone
1 x 3.5mm TRS to TRS Output Cable for Cameras
1 x 3.5mm TRS to TRRS Output Cable for Smartphones
Specifications
BY-XM6 TX Mini Transmitter
Transmission Type:     2.4GHz lSM Frequency
Modulation:     GFSK
Operating Range:     Up 100m (without obstacle)
RF Output Power:     77 dB
Power Requirements:     Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life:     Approx.4.5 hours
Antenna:     PIFA Antenna
Audio lnputs.     Built-in Microphone
Weight:     Approx.14.5g
Dimensions:     46x23.92x15mm
BY-XM6 RX Receiver
Transmission Type:     2.4GHz Digital Frequency
Modulation:     GFSK
Operating Range:     Up to 100m (without obstacle)
Audio Output:      3.5mm Headphone Jack
Connector: 3.5mm TRS Output Jack
Audio Output Level:     -60 dBV to -20dBV
Power Requirements:     Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life:     Approx.7 hours
Antenna:     PIFA Antenna
Weight:     Approx.32g
Dimensions:     62.1×31.6×16.5mm
