This inverter is our second largest three-phase inverter that we stock and it has quickly become one of our most popular in the Premium segment. As I said, it is one of the larger inverters and is intended for the slightly larger installations and of course for those of you with high requirements. Even this inverter had reliability and simplicity as watchwords when it was produced, you notice it when you start using it. Simplicity: you manage everything with a Touch button on an OLED screen or with your smartphone via an App, it couldn't be simpler. Complete with a Growatt Shine WiFi-X Wi-Fi transmitter and monitor your solar system via your smartphone wherever you are. Managing and monitoring your facility will be a pleasure.

The design: We think that this inverter is the best-looking of all equivalents on the market, and this means that it fits in even with aesthetes, which means that you can be sure that you will get double the joy of your investment!

Without renouncing your or your family's safety, it is high-performing and has a maximum effect of 98.6%

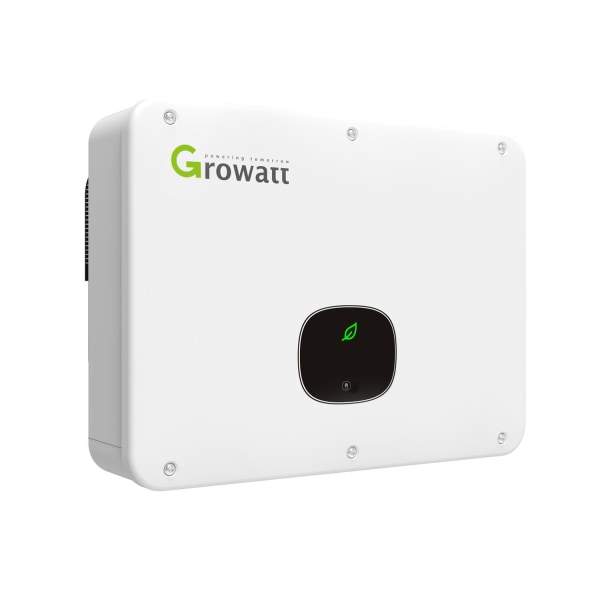

GROWATT* Premium Three-Phase Inverter / Inverter 25 Kw TL3-X is equipped with string monitoring that informs you in a safe way about the performance of your solar system. If your facility is exposed to disturbances, it detects these immediately and can therefore quickly and precisely take measures. With alerts, the system reacts immediately to power losses for individual strings and you can fix, for example, defective or obscured solar panels by fallen branches or snow, broken connectors, cabling and much more before they have time to cause problems for your installation.

· AFCI function: detecting arc faults on the DC circuit in time is important, otherwise you can risk a disaster. Growatt inverters are equipped with a built-in AFCI function which, when activated correctly, shuts down the inverter.

· Type II SPD: Afraid of thunder and lightning? To further increase safety, Type II SPDs are installed on both the DC and AC side, which minimizes damage in the event of lightning strikes.

  *GROWATT as a company: global leading company of smart energy solutions. Growatt is the largest in the world in Inverters, but in addition has an impressive portfolio of other energy products such as energy storage systems, EV chargers and smart energy management solutions. The company is dedicated to becoming the world's largest supplier of smart energy solutions. Growatt was founded in 2010 and has its manufacturing facility in Huizhou, China with 23 local offices around the world

Preferences

INPUT DATA

Max. Recommended PV output (for module STC); 37500W

Max. DC voltage; 1100V

Start the excitement; 250V

Nominal voltage; 600V

Mppt voltage range; 200V-1000V

Number of MPP trackers; 3

Number of PV strings per MPP tracker; 2

Max. Input current per MPP tracker; 26A

Max. Short circuit current per MPP tracker; 32A

OUTPUT DATA;

AC Nominal voltage; 25000W

Max. AC apparent voltage; 27700VA

Nominal AC voltage (range *); 220V/380V, 230V/400V (340-440V

AC frequency (range *); 50/60 Hz (45-55 Hz/55/65 Hz)

Max. output current; 40A

Adjustable power factor; 0.8 leading...0.8 lagging

THDI
